Procedure Development & Qualification Execution

​

Overview

Procedure development and qualification establish the technical foundation for reliable welding execution in high-integrity piping systems. When unfamiliar alloys or sensitive metallurgical systems are introduced, welding procedures must be validated under controlled thermal and atmospheric conditions before fabrication begins.

​

Pipe Welding Institute supports companies during this stage by executing controlled qualification welds and defining the essential variables required for stable, code-compliant welding procedures.

​

Typical Project Conditions

• Introduction of unfamiliar alloy systems (nickel alloys, duplex, super duplex, titanium, etc.)I

• No existing qualified welding procedure

• Uncertain essential variables or unclear code interpretation

• Unknown heat input limits or purge strategy requirements

• Concerns regarding cracking susceptibility, ferrite balance, or contamination risk



Scope of Engagement

Pipe Welding Institute supports the controlled development and qualification of welding procedures through execution-based validation, including:

• Heat input parameter development

• Interpass temperature governance

• Filler metal compatibility alignment

• Purge configuration and oxygen control strategy

• Definition of essential variables under applicable codes

• Qualification weld execution and procedural documentation



Mechanical and metallurgical testing, where required, is coordinated through qualified third-party laboratories.

​​

​​

​​​

​​​​​


Pre-Production Execution Trials

​

Overview

Pre-production execution trials validate welding procedures under conditions that closely replicate real fabrication environments. Even when a procedure has been qualified, alloy behavior, joint restraint, purge stability, and thermal exposure must be confirmed under production-representative conditions before fabrication scale-up.

​

Pipe Welding Institute conducts controlled execution trials to confirm that welding procedures perform reliably when applied to actual project materials, joint geometries, and process constraints.

​

Typical Project Conditions

• First-time fabrication of a new alloy system

• Limited production experience with sensitive materials

• Uncertainty regarding distortion, heat stacking, or root integrity

• Need to confirm purge stability under production conditions



Scope of Engagement

Controlled trial welds are performed to validate execution conditions prior to production release, including:

• Heat input window confirmation

• Interpass temperature discipline

• Root penetration integrity

• Purge stability under production-representative environments

• Dimensional response and distortion behavior



These trials allow fabrication teams to confirm procedural stability and execution reliability before committing work to production.

​​

​​​

​​​​​

​

​​

Alloy Execution Alignment

​

Overview

Even when welding procedures are qualified, successful execution depends on maintaining the thermal, atmospheric, and metallurgical conditions required by the alloy system. Variations in purge stability, heat input, filler handling, or interpass discipline can lead to inconsistent weld quality despite procedural compliance.

​

Pipe Welding Institute supports fabrication teams by stabilizing real welding conditions under qualified procedures, ensuring execution remains aligned with the metallurgical and atmospheric requirements of the material system.

​

Typical Project Conditions

• Qualified procedures exist but execution consistency is uncertain

• Transition from conventional materials into nickel, duplex, or reactive alloys

• Difficulty maintaining purge control or interpass limits

• Root quality issues despite procedural compliance



Scope of Engagement

Execution alignment focuses on stabilizing welding conditions under qualified procedures, including:

• Procedure-based live execution review

• Purge environment stabilization

• Heat input governance

• Filler handling and contamination control

• Process-specific execution refinement



All alignment activities are performed within the constraints of the applicable welding procedure and governing codes.

​​


​

​

​​​

Specialty Alloy Execution

​

Overview

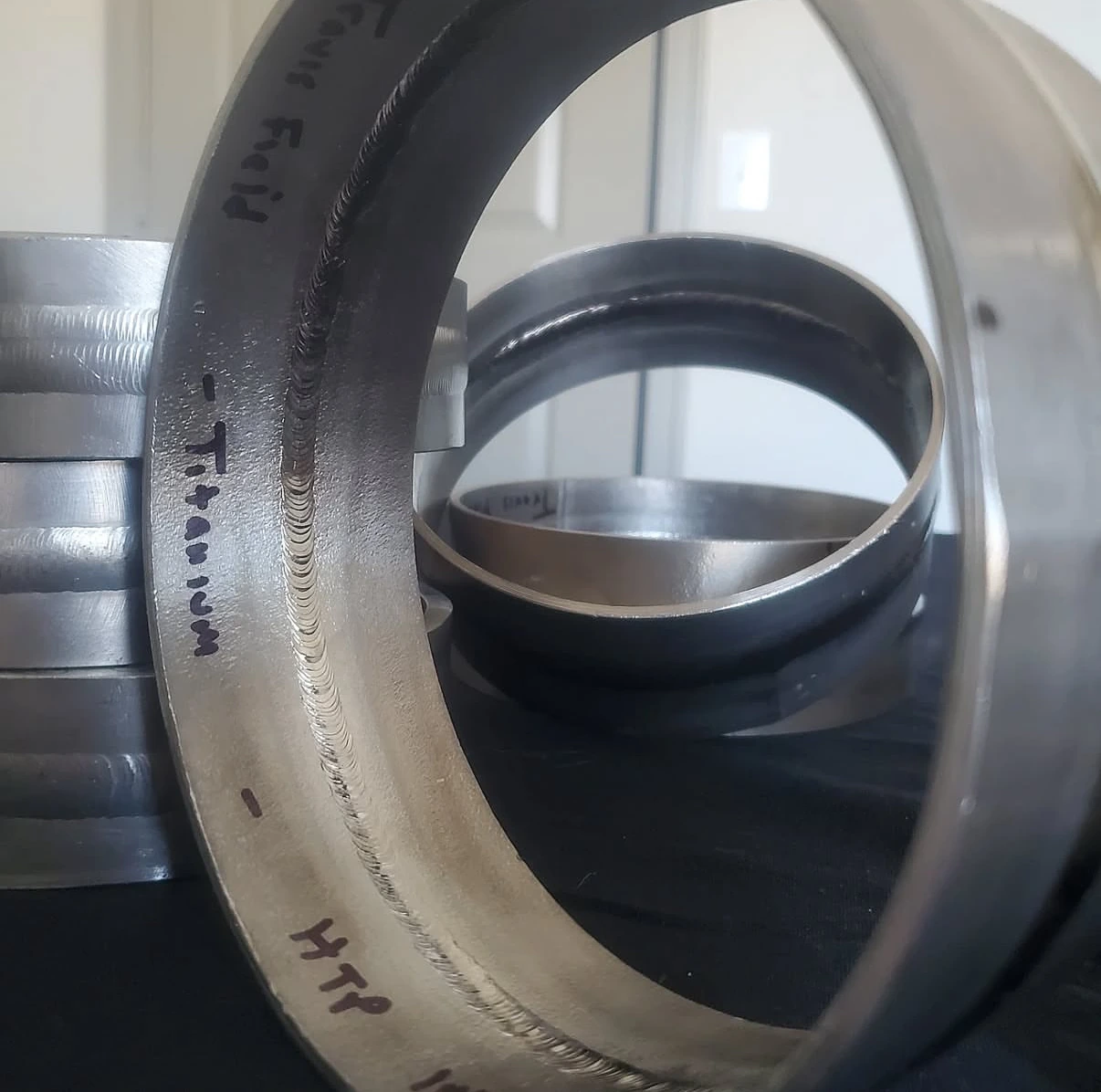

Certain alloy systems require tightly controlled thermal and atmospheric conditions that may not be achievable within conventional production environments. Reactive and contamination-sensitive materials such as titanium, high-alloy nickel systems, and duplex alloys can be highly sensitive to oxygen exposure, purge instability, and thermal mismanagement during welding.

​

Pipe Welding Institute performs limited-scope technical execution of these welds under controlled environmental and process conditions, allowing fabrication teams to complete critical components where metallurgical stability and execution discipline are essential.

​

Typical Project Conditions

• Reactive or contamination-sensitive materials requiring controlled environments

• Production environments unsuitable for reactive alloys (e.g., titanium)

• High-value components requiring isolated technical execution

• Limited batch fabrication of advanced alloy components



Scope of Engagement

Pipe Welding Institute performs limited-scope execution of technically demanding welds under controlled conditions, including:

• Atmospheric contamination control

• Purge stabilization and oxygen management

• Thermal input governance

• Dimensional verification and weld integrity confirmation



This work is restricted to technically sensitive components requiring controlled execution environments and is not intended to replace general production fabrication.

​​​

​​​

​​

​​

​​​​​​

On-Site Execution Advisory & Troubleshooting



Overview

During procedure qualification and early fabrication phases, welding performance can be affected by unstable purge environments, inconsistent thermal control, or process transitions within the production environment. These conditions can lead to weld quality issues even when procedures are technically compliant.

​

Pipe Welding Institute provides on-site technical advisory to stabilize welding execution and ensure metallurgical and atmospheric conditions remain aligned with the requirements of the material system and governing procedures.

​

Typical Project Conditions

• Purge instability during fabrication

• Root penetration inconsistency

• Excessive heat stacking or thermal drift

• Intermetallic formation concerns in duplex or nickel systems

• Equipment or tooling transition challenges



Scope of Engagement

On-site technical advisory may be provided during qualification or early production phases to:

• Stabilize purge environments

• Govern heat input and interpass discipline

• Correct execution parameter drift

• Resolve alloy-specific welding deficiencies

• Support alignment between fabrication teams and QA requirements



These engagements focus on restoring stable welding conditions and ensuring execution remains consistent with the requirements of the qualified procedure.

​

​

​

​​​

​
